If you’re laying a gas connection anywhere in Pakistan — a new housing plot, a commercial kitchen, or an industrial unit — the pipe you choose has to satisfy two things at once: it has to work safely for decades underground, and it has to pass SNGPL or SSGC inspection before gas is ever turned on. This is exactly where MDPE pipe Pakistan buyers get confused, because MDPE looks similar to ordinary HDPE water pipe but is built and certified differently.
This guide explains what MDPE pipe actually is, which sizes and pressure ratings utilities accept, what “SNGPL approved pipes” really means in practice, and how to avoid the single most common mistake contractors make on gas projects in Pakistan — mixing up water-grade and gas-grade pipe.
What Is MDPE Pipe, and Why Does Gas Distribution Use It?
MDPE stands for Medium-Density Polyethylene. It sits between HDPE (High-Density Polyethylene) and LDPE (Low-Density Polyethylene) in terms of density and rigidity. For gas distribution specifically, MDPE is preferred over rigid materials like GI (galvanized iron) steel pipe for a few practical reasons:
No corrosion risk. Steel gas lines eventually rust underground, especially in humid coastal areas like Karachi. MDPE doesn’t corrode at all.
Flexibility. MDPE bends around obstacles, tree roots, and existing utility lines without needing as many joints or elbow fittings as rigid pipe.
Crack resistance. MDPE has excellent resistance to slow crack growth and rapid crack propagation (RCP) — critical for a buried pipe carrying pressurized gas.
Faster installation. MDPE pipe is supplied in coils for smaller diameters, which means fewer joints per meter of trench compared to rigid pipe sections.
Globally, polyethylene pipe now accounts for the majority of new gas distribution networks installed, which is part of why SNGPL (serving northern and central Pakistan) and SSGC (serving Sindh and Balochistan) have standardized around MDPE and HDPE for underground gas mains and service connections.
MDPE Pipe Sizes and Grades Used in Pakistan
MDPE pipe for gas applications in Pakistan is typically manufactured from PE80 raw material, though PE100 grade is increasingly used for higher-pressure sections. The two grades differ in Minimum Required Strength (MRS) — PE80 has a different density class than PE100, which has a higher long-term strength rating, allowing either a thinner wall at the same pressure or a higher pressure rating at the same wall thickness.
Common MDPE pipe sizes for gas service connections in Pakistan run from 20mm up to around 180mm outer diameter, covering everything from a single household gas meter connection up to a distribution branch line feeding a small residential sector. Larger-diameter HDPE pipes for gas and water distribution typically take over for main distribution trunk lines.
A quick reference for how SDR (Standard Dimension Ratio — the ratio of outer diameter to wall thickness) relates to pressure class:
| SDR Rating | Typical Use Case |
| SDR 17.6 | Low-pressure gas distribution networks |
| SDR 11 | Medium-pressure gas mains and service lines |
| SDR 9 | Higher-pressure sections requiring thicker wall |
Lower SDR numbers mean a thicker wall relative to diameter, which means a higher pressure rating — but also a higher cost per meter. Specifying a lower SDR than your project needs isn’t “extra safe,” it’s just extra cost; specifying a higher SDR than the operating pressure requires is a genuine safety risk.
SNGPL & SSGC Approval: What “Approved Pipe” Actually Means
This is the part most first-time buyers get wrong. There isn’t a single universal “SNGPL-approved brand list” you can just trust blindly — approval works at the material and manufacturer level, not just the brand name on the box. In practice, SNGPL and SSGC approval standards are built around:
Standard conformance — the pipe must conform to ISO 4437 (the international standard specifically for polyethylene gas pipe systems), often cross-referenced against DIN 8075 or ASTM D2513 in project specifications.
PSQCA certification — the Pakistan Standards and Quality Control Authority certifies pipe against PS 3580, the relevant Pakistan Standard for polyethylene gas and water pipe. Utilities require this certification mark to be physically stamped on the pipe.
Manufacturer prequalification — SNGPL and SSGC maintain their own vendor registration processes, and pipe suppliers to major projects are typically also expected to hold PEC (Pakistan Engineering Council) registration alongside ISO 9001:2015 manufacturing certification.
Batch test certificates — every delivery should come with a conformance certificate tying that specific batch back to the raw material grade, SDR, and standard tested.
The Water Pipe vs. Gas Pipe Mix-Up
One error site engineers see repeatedly: contractors receiving HDPE pipe certified to ISO 4427 (the water supply standard) and installing it as if it were gas-rated. The two pipes can look nearly identical on the outside, but they’re tested and rated for entirely different service conditions. The simplest field check is the colour stripe embedded in the pipe wall — gas pipe carries a yellow identification stripe, while water pipe carries a blue one. Never accept pipe without the correct stripe and the matching standard printed on the pipe body.
Gas Pipe Fittings: Compression vs. Electrofusion
MDPE pipe needs fittings designed for gas service, not generic water fittings. Two jointing method systems are standard:
Compression fittings — mechanical fittings that clamp onto the pipe without heat. These are faster for small-diameter service connections (household meter takeoffs) and don’t require specialized equipment.
Electrofusion fittings — the fitting has an embedded heating coil; an electrofusion control box melts the pipe and fitting together into a single fused joint. This is the standard for medium-pressure mains and larger branch connections, since it produces a stronger, permanent joint with no mechanical parts that can loosen over time.
Whichever method is used, gas pipe fittings must be rated for the same standard and pressure class as the pipe itself — mixing a water-rated compression fitting onto a gas line is a serious and completely avoidable safety failure.
How to Choose the Right MDPE Pipe for Your Project
A practical decision checklist for contractors and engineers sourcing MDPE pipe Pakistan-wide:
Confirm the application pressure first. Ask your utility (SNGPL or SSGC) what operating pressure your section of network runs at — this determines your SDR requirement, not guesswork.
Match the size to the load. A single household connection rarely needs anything above 32mm; branch lines serving multiple connections scale up from there.
Verify certification physically, not just on paper. Check the PSQCA and ISO 9001:2015 certification mark, the yellow gas stripe, the SDR stamped on the pipe, and the batch number — then match that batch number to the test certificate provided.
Confirm fusion compatibility. If your project uses electrofusion joints, make sure your fittings and MDPE pipes and fittings are from compatible material grades so the fusion parameters (voltage, time) match what the equipment expects.
Ask for PEC and ISO documentation upfront, especially for WASA, SNGPL, or SSGC-linked tenders where these are prequalification requirements, not optional extras.
Installation and Handling Notes
MDPE pipe is generally easier to handle than rigid alternatives, but a few site practices matter:
Store coiled pipe away from direct sunlight for extended periods before installation — UV exposure over months can affect surface properties, even though buried service life is unaffected.

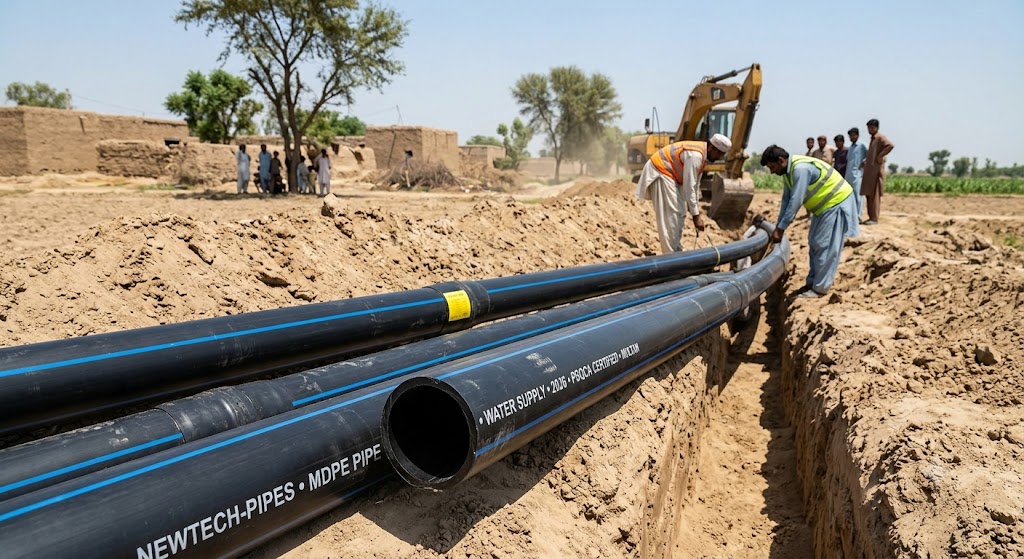

Maintain proper trench bedding (a sand or fine-fill base) to avoid point-loading the pipe against sharp stones or debris.
Never drag pipe across rough or abrasive surfaces during installation — surface scoring can reduce long-term pressure performance even if it looks cosmetic.
Leave adequate depth of cover per utility specification; this is typically deeper than water pipe cover requirements because of the added safety margin gas lines require.
FAQs
What is the difference between MDPE and HDPE pipe for gas lines?
MDPE generally refers to PE80-grade material, commonly used for smaller-diameter, lower-pressure gas service connections. HDPE (often PE100 grade) is used for larger-diameter, higher-pressure distribution mains. Both must conform to ISO 4437 for gas service — the distinction is mainly about density grade and pressure class, not certification standard.
Can the same MDPE pipe be used for both gas and water?
No. Even when the base material is similar, gas-rated and water-rated pipe are tested, certified, and colour-coded differently (yellow for gas, blue for water). Utilities and safety codes require pipe to be used only for the service it was certified and marked for.
What sizes of MDPE pipe are available in Pakistan?
MDPE pipe for gas applications in Pakistan is commonly available from around 20mm up to 180mm in outer diameter, covering household service connections through to distribution branch lines. Larger-diameter requirements typically shift to HDPE gas-grade pipe instead.
How do I know if a supplier’s pipe is genuinely SNGPL or SSGC approved?
Ask for the PSQCA certification mark on the pipe itself, the manufacturer’s ISO 9001:2015 certificate, and a batch-specific test certificate referencing ISO 4437 or the equivalent Pakistan Standard. Genuine documentation should tie a specific delivery batch to specific test results — a generic brochure is not the same as a batch certificate.
Is MDPE pipe more expensive than steel gas pipe?
Per-meter material cost varies by size and SDR, but MDPE typically reduces total installed cost because it requires less labor, no corrosion protection coating, and fewer joints for a given trench length. Steel pipe can have a lower material cost in some sizes but higher long-term maintenance cost due to corrosion.
Conclusion
Choosing the right MDPE pipe for a gas project in Pakistan comes down to matching the correct grade, SDR rating, and certification to your actual operating pressure — and verifying that certification physically on-site rather than taking a supplier’s word for it. Get these fundamentals right, and gas installation becomes a straightforward, long-lasting part of your project rather than a recurring maintenance headache. NewTech-Pipes, as an ISO 9001:2015-certified manufacturer, produces MDPE and HDPE pipe for both water and gas applications and can help contractors confirm the correct specification for their specific project.
